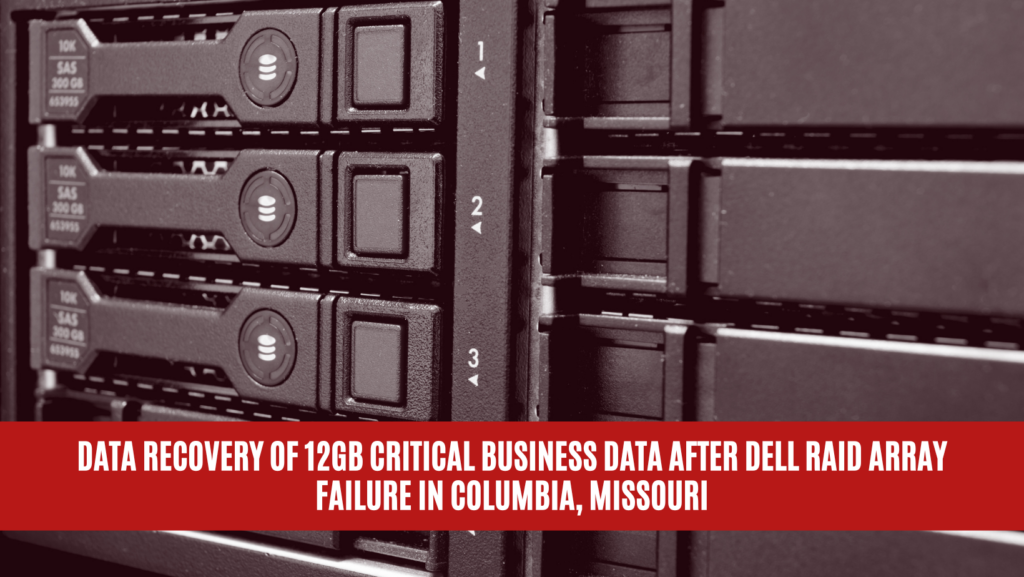

Data Recovery of 12GB Critical Business Data After Dell RAID Array Failure in Columbia, Missouri

A small business in Columbia, Missouri, faced a critical data loss situation after its Dell E13S RAID array failed unexpectedly. The system, which provided over 55TB of total storage, suddenly became inaccessible when one drive failed, and the RAID would not rebuild.

Although RAID systems are designed to tolerate a single drive failure, this case proved that redundancy does not guarantee recovery. With essential files locked away and no backup available, the business turned to WeRecoverData for professional RAID data recovery.

RAID Rebuild Failure After Drive Replacement

The company relied on a Dell E13S RAID system running Windows Server to store years of documents, scanned forms, videos, and archived files. The system had operated without issue until one drive failed.

In response, the business replaced the failed drive and attempted a rebuild using a Dell PERC RAID controller. However, the new drive never came online. As a result, the RAID array remained inaccessible.

Built-in Dell recovery tools did not resolve the issue. Further rebuild attempts risked permanent data loss, so the business stopped troubleshooting and contacted WeRecoverData before the situation worsened.

55TB RAID System — 12GB of Critical Business Data

While the RAID array had a total capacity of 55TB, it contained 12GB of active business data. Despite the relatively small data footprint, those files were essential to daily operations.

Without immediate recovery, the company faced operational disruption and potential financial loss. Since no backup existed, professional RAID recovery became the only safe option.

Secure Lab Analysis and RAID Reconstruction

When the RAID system arrived at WeRecoverData’s secure lab, our engineers immediately began a detailed forensic evaluation.

First, they carefully documented the original RAID configuration, including:

  • Drive order

  • Stripe size

  • Parity information

  • RAID metadata

Accurate reconstruction of these parameters is critical in RAID data recovery. Even minor configuration errors can prevent successful restoration.

Next, the team created sector-by-sector images of every drive, including the failed disk. This process preserved the original data and prevented further damage during recovery. Imaging also allowed engineers to work from exact replicas rather than the original drives.

Virtual RAID Rebuild and Data Extraction

After completing the imaging process, our engineers rebuilt the RAID in a virtual environment. By bypassing the failed Dell PERC controller, they recreated the array exactly as it existed before the failure.

Once the virtual RAID came online, the team scanned the file system and began data extraction. Engineers successfully recovered:

  • Business documents

  • Spreadsheets

  • Scanned files

  • Videos

  • Images

Importantly, they preserved the original folder structure, ensuring seamless reintegration into the client’s workflow.

100% Data Recovery Success

In the end, WeRecoverData recovered 100% of the 12GB of critical business data. The team verified all files for integrity and delivered the recovered data on a new, secure storage device.

Additionally, our specialists provided guidance on safer RAID usage and proper backup planning to help prevent future data loss incidents.

RAID Redundancy Is Not a Backup

This case highlights an important reality: RAID provides redundancy, not backup. While RAID systems can tolerate certain hardware failures, rebuilds can fail due to controller issues, metadata corruption, or multiple drive problems.

When a RAID array goes offline or fails to rebuild, continued troubleshooting can permanently damage data. Instead, immediate professional evaluation offers the best chance of full recovery.

WeRecoverData: Experts in Advanced RAID Recovery

WeRecoverData specializes in advanced data recovery for:

  • Failed RAID arrays

  • RAID rebuild failures

  • Controller malfunctions

  • Large-capacity storage systems

If your RAID array won’t rebuild or has gone offline, stop troubleshooting and contact WeRecoverData. Our engineers can recover what matters most.
